QP-ES-II Static Eliminator Bar

Name: QP-ES-II Static Eliminator Bar
Brand: QEEPO Shanghai Static Co., Ltd.
Availability: InStock

The QP-ES-II has been upgraded from its previous model, featuring enhanced materials and internal structure, ensuring safety and efficiency. It offers rapid static electricity elimination, simple installation, and is suitable for various industrial production environments to remove static electricity.

Get a Quote PDF Download

PDF Download

Specification

Performance Advantages of QP-ES-II Static Eliminator Bar

Material upgrade, safety insulation

The exterior is made of high-insulation composite materials with a non-metallic structural design

Fast Static Removal Speed

Excellent static removal performance with a static removal speed of ≤ 0.1s.

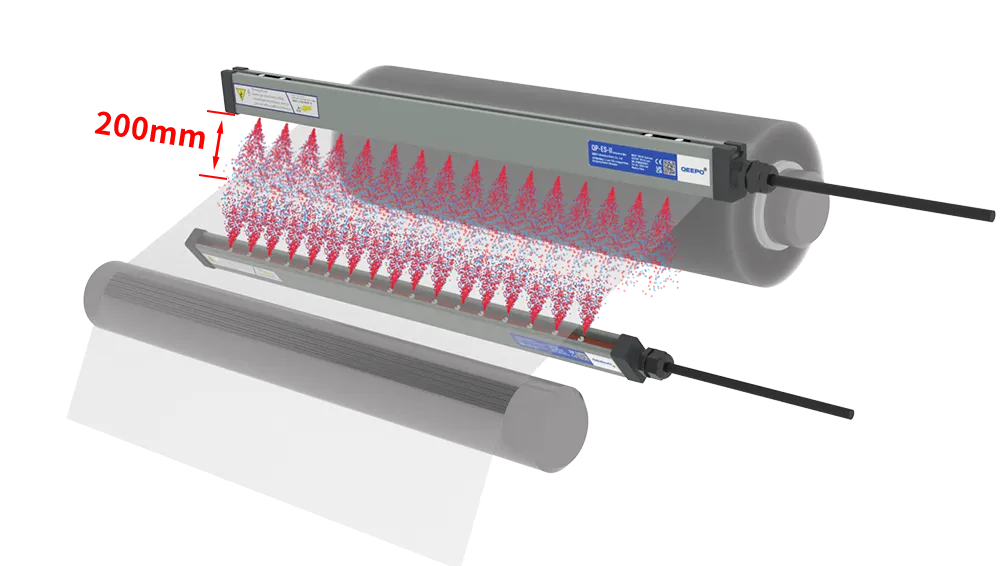

Static electricity elimination over a greater distance

The maximum installation distance can reach 200mm


Easy and convenient installation

Adopting high insulation fixed slider for easy installation and fixation


Length Can Be Customized

The length of 125-4025mm can be customized, and the source manufacturer can customize in large quantities.

Equipped With A High-Voltage Power Supply For Use Together

Excellent anti-static performance, wide applicability, and easy operation


Videos

Video of QP-ES-II Static Eliminator Bar

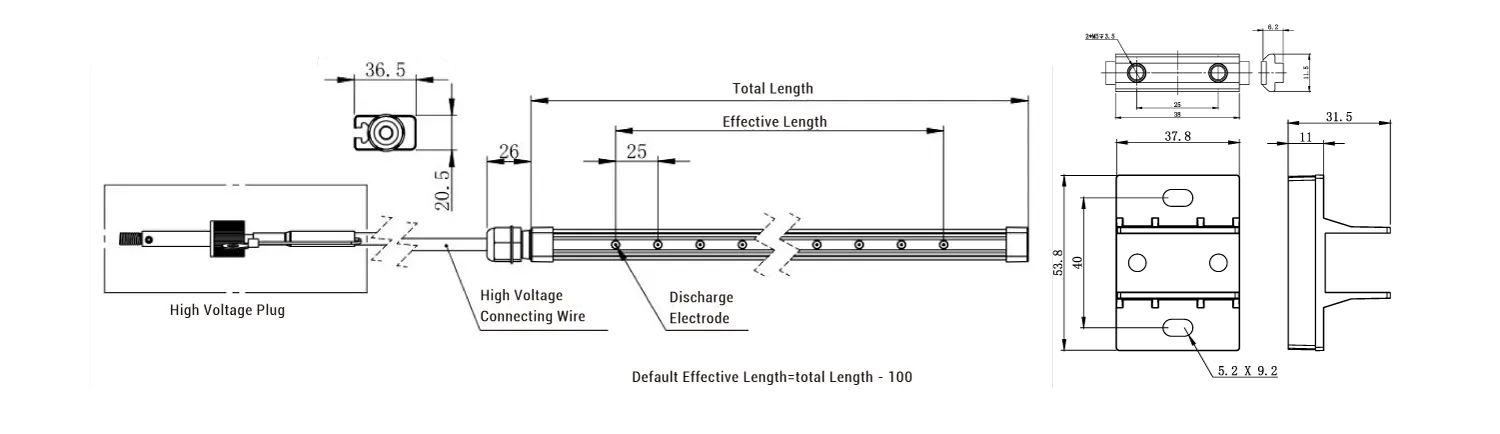

Specification

Specification of QP-ES-II Static Eliminator Bar

TYPE	QP-ES-II
Working voltage	MAX 7Kv AC
Working current	MAX 5mA
working frequency	50/60Hz
operation mode	Power frequency AC
Working distance	3~20cm
Recommended installation distance	3~5cm
Discharge electrode spacing	25mm
Discharge electrode material	SS. / W
length	125~4025mm
working temperature	0~50℃
Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;
test instrumentation：CPM374
